Machine de broyage du minerai d'or

Aperçu des Produits

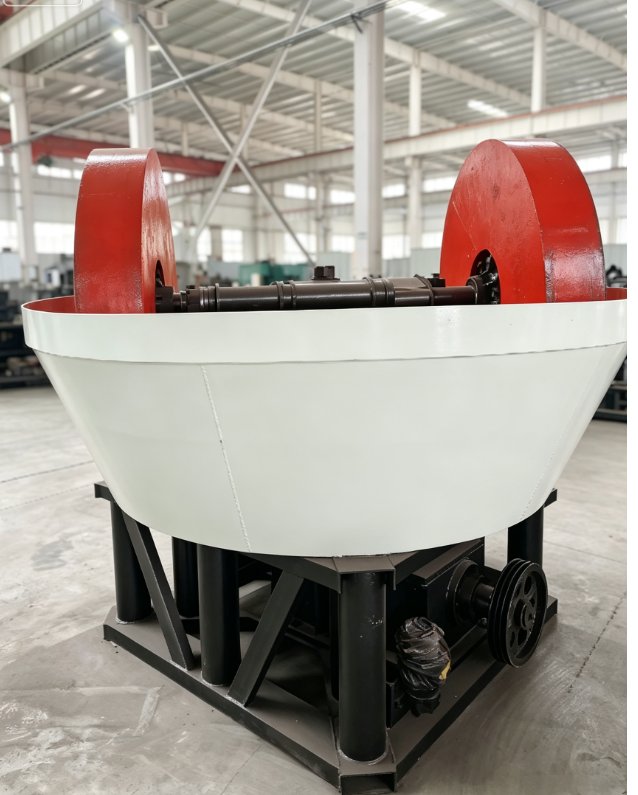

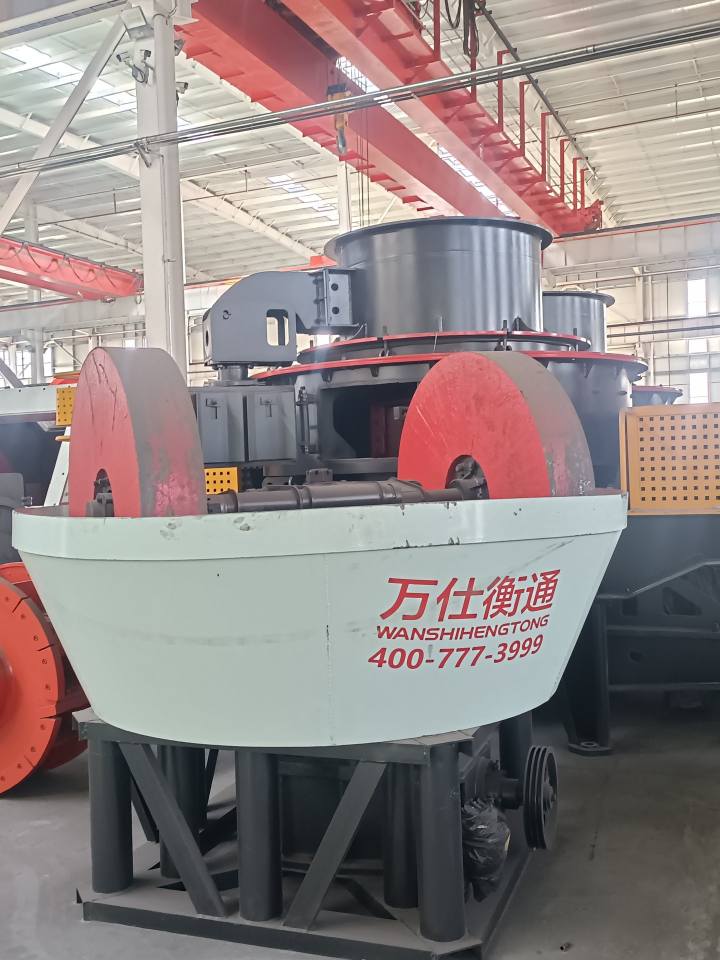

Our gold wet pan mill is a high-efficiency, low-consumption gold grinding and recovery machine specially designed for rock gold, quartz gold, and mixed gold ore. Adopting traditional wet grinding technology with upgraded thickened grinding wheels and anti-wear chassis, this gold pan mill finely crushes and grinds gold ore to fully dissociate monomer gold from gangue stone. Featuring simple structure, easy operation, low noise and long service life, it is the ideal primary grinding equipment for small and medium gold mines, perfectly matching ball mills, sluice boxes and shaking tables to improve the overall gold recovery rate.

Product Brief Introduction

Professional gold wet pan mill machine for rock gold fine grinding and gold dissociation. Different from dry grinding equipment, our wet pan mill uses water milling processing to avoid fine gold loss and dust pollution. It efficiently grinds bulk gold ore into fine slurry, completely separating gold particles from stones and impurities. With ultra-high wear resistance, stable operation and zero fine gold waste, this cost-effective gold grinding machine is widely used in African, South American and Southeast Asian small-scale gold mining industries, becoming the preferred replacement for traditional ball mill small-scale ore grinding.

Detailed Product Introduction

1. Product Introduction

Gold wet pan mill, also known as gold pan grinding mill, is a classic and efficient wet grinding equipment customized for natural rock gold ore. It is mainly used for fine grinding, dissociation and pre-enrichment of gold ore, silver ore, copper ore and other non-ferrous metal ores. Compared with ball mills and hammer mills, the wet pan mill has outstanding advantages in fine gold recovery, especially suitable for micro-fine gold and disseminated gold ore grinding.

The equipment integrates feeding, grinding, stirring and pulping in one unit. Through the continuous rolling and extrusion of heavy-duty grinding wheels, the bulk ore is gradually ground into fine ore slurry, so that the wrapped fine gold is fully dissociated, creating the best pre-processing condition for subsequent gold selection and recovery. It is widely applicable to small and medium-sized gold mining sites, private mineral processing workshops and mobile gold processing projects.

2. Core Features & Product Advantages

• Ultra-high Gold Recovery Rate, No Fine Gold Loss: Adopts full wet grinding mode, which effectively avoids fine gold flying and loss caused by dry grinding. The rolling and grinding principle ensures that wrapped micro-fine gold can be fully dissociated, greatly improving the final gold recovery rate compared with ordinary grinding equipment.
• Super Wear-resistant & Long Service Life: The grinding wheel and chassis are made of high-chromium alloy wear-resistant material, which is forged and thickened. It resists strong extrusion and friction of ore, not easy to deform and wear. The service life is 2-3 times longer than ordinary pan mills, reducing long-term replacement costs.
• Low Energy Consumption & Cost-effective: Optimized transmission and rotation structure, low power consumption and low operating cost. The whole machine has few vulnerable parts and simple maintenance. It is more cost-effective than ball mill equipment for small-scale ore grinding, with low investment and quick return.
• Simple Operation & Stable Performance: Fully automatic circulating grinding operation, no complicated debugging required. Workers can master the operation in 5 minutes. The equipment runs smoothly with low noise, no vibration and low failure rate, adapting to long-time continuous mining work.
• Environmental & Dust-free: Closed water milling processing, no dust pollution, meets global environmental protection mining standards. The ore slurry is evenly discharged, which is convenient for matching with downstream gold separation equipment such as shaking tables and sluice boxes.
• Wide Adaptability & Customization: Multiple models from small 1100 type to large 1600 type are available, supporting processing of different hardness and particle size gold ore. Customized voltage, power and wheel size can be provided according to customer mining conditions.

3. Working Principle

After the raw rock gold ore is put into the grinding chassis evenly, the motor drives the two heavy grinding wheels to rotate circumferentially. Relying on gravity and mechanical pressure, the grinding wheels continuously squeeze, roll and grind the ore. At the same time, circulating water is added for wet grinding, which quickly turns solid ore into fine ore slurry. In the grinding process, the gold wrapped in the rock is completely dissociated due to continuous extrusion and friction. The qualified fine ore slurry flows out through the discharge port, and enters the next gold separation equipment for gravity separation and gold recovery, while unqualified coarse ore continues to be rolled and ground in the machine until reaching the standard fineness.

4. Application Scope

• Grinding and dissociation of rock gold, quartz gold and vein gold ore
• Fine grinding processing of silver ore, copper ore, tin ore and other non-ferrous ores
• Small and medium-sized gold mining plants and mobile mineral processing sites
• Supporting pre-grinding equipment for shaking table, sluice box and centrifugal gold separator
• Mining projects in remote areas with limited budget and simple conditions

5. Main Product Parameters

• Common Models: 1100 / 1200 / 1300 / 1400 / 1500 / 1600 type
• Processing Capacity: 1–8 TPH (different models optional)
• Grinding Wheel Diameter: 1100mm–1600mm (customizable)
• Matching Power: 7.5KW–22KW
• Grinding Fineness: 80–200 mesh adjustable
• Working Mode: Full wet circulating grinding
• Operation Type: Continuous automatic feeding and discharging

6. After-sales Service & Support

We provide one-stop professional services for all gold wet pan mill equipment, including free model selection according to ore conditions, process scheme design, factory direct sales, overseas installation guidance and long-term after-sales maintenance. All our pan mills are strictly tested before delivery, with stable performance and high recovery rate. We support global shipping, fast delivery and spare parts supply, helping customers reduce mining costs and maximize gold mining benefits.
