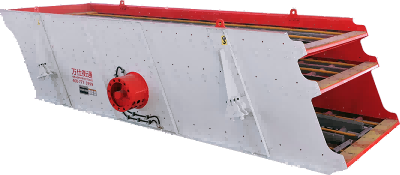

WSHT Écran vibrant linéaire (série ZSG)

WSHT Linear Vibrating Screen (ZSG Series)

Capacity: 2-6 TPH | Precision Engineered for Mining & Mineral Processing

Aperçu des Produits

The WSHT ZSG Series Linear Vibrating Screen is a compact, high-efficiency screening machine designed for fine material classification, dewatering, and desliming in small to medium-scale processing operations. The linear motion trajectory provides excellent screening accuracy for fine materials in the 0.5-50mm size range. Its dual-vibrator design generates a straight-line vibration that efficiently conveys and stratifies material, making it ideal for laboratory, pilot plant, and small-scale production applications.

Key Features & Benefits

• Linear Motion Design
  Dual vibrator motors generate linear vibration for efficient material conveying and stratification.
• Compact Footprint
  Small physical footprint ideal for space-constrained installations in pilot plants and laboratories.
• Fine Screening Accuracy
  High-efficiency screening of fine materials with cut points from 0.5mm to 50mm.
• Low Maintenance
  Simple vibrator motor design with sealed bearings requires minimal maintenance attention.
• Dewatering Capability
  Effective for dewatering fine slurries and removing surface moisture from washed materials.

Technical Specifications

Working Principle

The linear vibrating screen employs two counter-rotating vibrator motors mounted at opposing angles to the screen deck. The synchronized rotation of these motors produces a resultant linear vibration force directed along a specific angle, typically 45° to the horizontal. This linear motion both conveys material forward along the deck and stratifies it by particle size. The material moves in a straight line without bouncing, ensuring continuous contact with the screen surface for efficient fine particle separation.

Applications

• Fine Ore Screening
  Fine classification of crushed ore in small-scale gold and mineral processing operations.
• Dewatering
  Removal of surface moisture from washed mineral sands, coal fines, and aggregate products.
• Desliming
  Removal of ultra-fine clay and slime particles from mineral slurries prior to gravity separation.
• Laboratory Testing
  Pilot plant and laboratory screening for process development and quality control applications.
